Safety Labels and Locations

Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.
If any label becomes illegible or comes off, contact your POLARIS dealer to purchase a replacement. Replacement safety labels are provided by POLARIS at no charge. The part number is printed on the label.

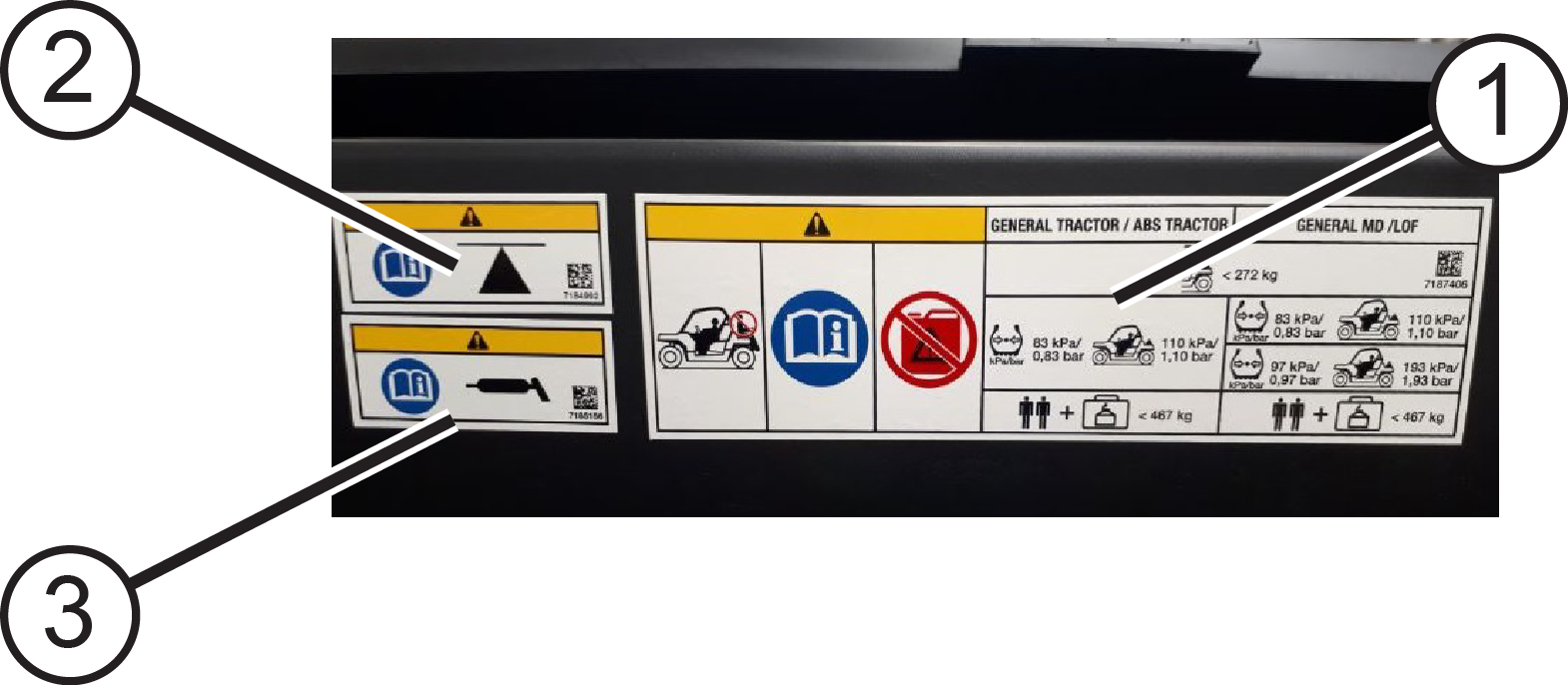

Alert Locations

The following labels are located on the front panel of the rear cargo box.
  • Load / Passenger / Tire Pressure Warning
  • Jacking Points Alert
  • Greasing Points Alert

Shift Alert (7183987)

The Shift Alert is located below the gear selector.

  • To avoid transmission damage, shift only when vehicle is stationary and at idle.
  • APPLY BRAKE TO START. When this vehicle is not in operation, or unattended, place shift in the park position.


General Alert (7187405)
Tractor and Zugmaschine

The General Alert is located between the seats, above the armrest.
  • Always read the owner’s manual.
  • Never allow anyone under 16 years of age to operate this vehicle.
  • Always use the cab nets or doors.
  • Avoid operating in a manner that could result in a rollover.
  • This vehicle is approved for on-road operation.
  • Never use alcohol or drugs before or while driving or riding.
  • Always wear seat belts.
  • Wear approved helmet, goggles, and protective clothing.
  • Avoid exhibition driving.

Clutch Cover Alert (7181427)

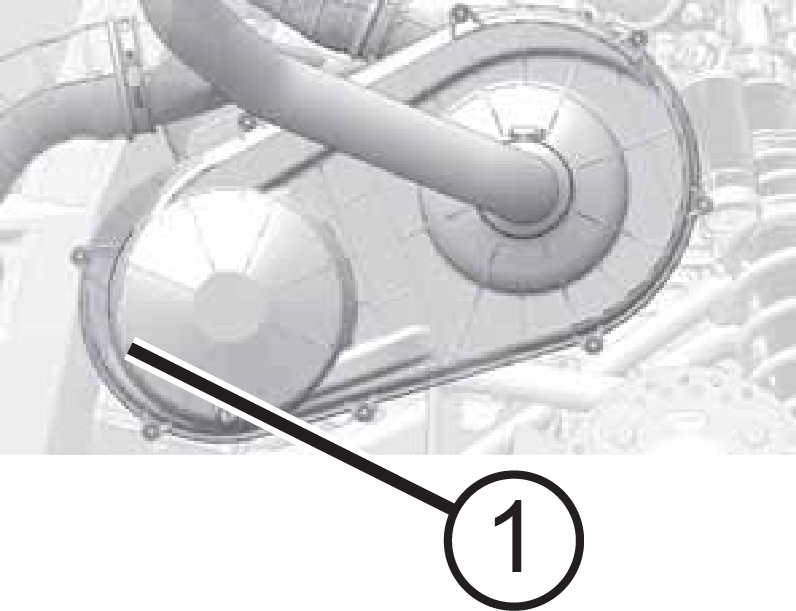

Clutch Cover Alert Location

WARNING

  • Improper service or maintenance of this PVT system can result in vehicle damage, SEVERE INJURY or DEATH.
  • Always look for and remove debris inside and around clutch and vent system when replacing belt.
  • Read owner’s manual or see authorized Polaris dealer.


Jacking Points Alert (7184992)

Jacking positions are located beneath the vehicle’s center points. Read the owner’s manual.


Greasing Points Alert (7185156)

Lubricate as recommended. Read owner’s manual.


Intake Alert (7185975)

Use a Polaris approved air filter. The use of a non-Polaris approved air filter may cause engine damage. Before installing filter ensure there is no dirt or debris in the clean side of the intake tube. The air filter must be properly seated and the hinges fully inserted when the lid is reinstalled. Please reference your owner’s manual for additional information regarding the air filter service.
Label Location: on the air box.


Load/Passenger/Tire Pressure Alert (7187406)

The Load/Passenger/Tire Pressure warning decal is located on the front panel of the rear cargo box.
WARNING
  • Never carry passengers in cargo box.
  • Passengers can be thrown off. This can cause serious injury or death.
  • Read your Owner’s Manual.

NEVER carry fuel or other flammable liquids on this vehicle. Failure to follow this instruction could lead to serious burn injuries or death

IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.
  • If total payload is greater than 500 lbs., the vehicle must be operated in LOW range.
  • Reduce speed and allow greater distance for braking when carrying cargo.
  • Overloading or carrying tall, off-center, or unsecured loads will increase your risk of losing control. Loads should be centered and carried as low as possible in box.
  • For stability on rough or hilly terrain, reduce speed and cargo.


GENERAL TRACTOR / ABS TRACTOR

MAXIMUM CARGO BOX LOAD

272 kg

TIRE PRESSURE IN KPa (bar)

FRONT: 83 (0,83)

REAR: 110 (1,10)

MAXIMUM WEIGHT CAPACITY


INCLUDES WEIGHT OF OPERATOR, PASSENGERS, CARGO, AND ACCESSORIES

467 kg

Read Operation and Maintenance Manual for more detailed loading information.

Fuel Alert

Compatible Fuel Types:

  • E5
  • E10
