Content Source: 2019 GEM em1400 LSV Owner’s Manual (9929177 R02) > Safety Chapter

IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle.Always follow the warnings and instructions in Owner's Manual.

Click the CONTENTS link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com

Safety Labels and Locations

Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle
If any label becomes illegible or comes off, contact your authorized GEM dealer to purchase a replacement. Replacement safety labels are provided at no charge. The part number is printed on the label.
Discretionary Warning
Battery Caution

Discretionary Warning

WARNING
Improper vehicle use can result in Severe Injury or Death.
NEVER Operate:
  • At speeds too fast for your skills or the conditions.
  • After or while using Alcohol or Drugs.
  • On extreme off-road terrain or extreme slopes.
  • With more than one passenger, or a passenger under age twelve or who cannot comfortably reach the floor and hand holds.
  • With non-GEM approved accessories - they may seriously affect stability.
ALWAYS:
  • Wear your seat belt. Vehicle rollover could cause severe injury or death.
  • Wear eye protection and keep hands and feet in vehicle at all times. Wear a helmet when appropriate.
  • Reduce speed and use extra caution when carrying passengers.
  • Avoid sharp turns or turns while applying heavy throttle.
  • Operate slowly in reverse - avoid sharp turns or sudden braking.
  • Make sure passenger reads and understands all safety labels.
  • Watch for branches or other hazards that could enter vehicle.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

Battery Caution

CAUTION
  • Do not drive through water above the floor of the vehicle. Battery damage will occur.
  • Batteries require regular maintenance.
  • Failure to maintain batteries in accordance with the owner’s manual can result in battery damage, vehicle malfunction, fire and/or severe injury or death.
  • Max towing speed 10 MPH (16 km/h) - drivetrain damage will occur if towed faster than 10 MPH (16 km/h).
  • Set parking brake before leaving vehicle.
  • Turn Power On key to “Off” position and remove when not in use.
When towing vehicle, turn Power On key to “Off” position.

Age 16 Warning

WARNING
Operating this vehicle if you are under the age of 16 increases your chance of severe injury or death.
NEVER operate this vehicle if you are under age 16 and NEVER operate this vehicle without a valid driver’s license.

Battery Charging Warning

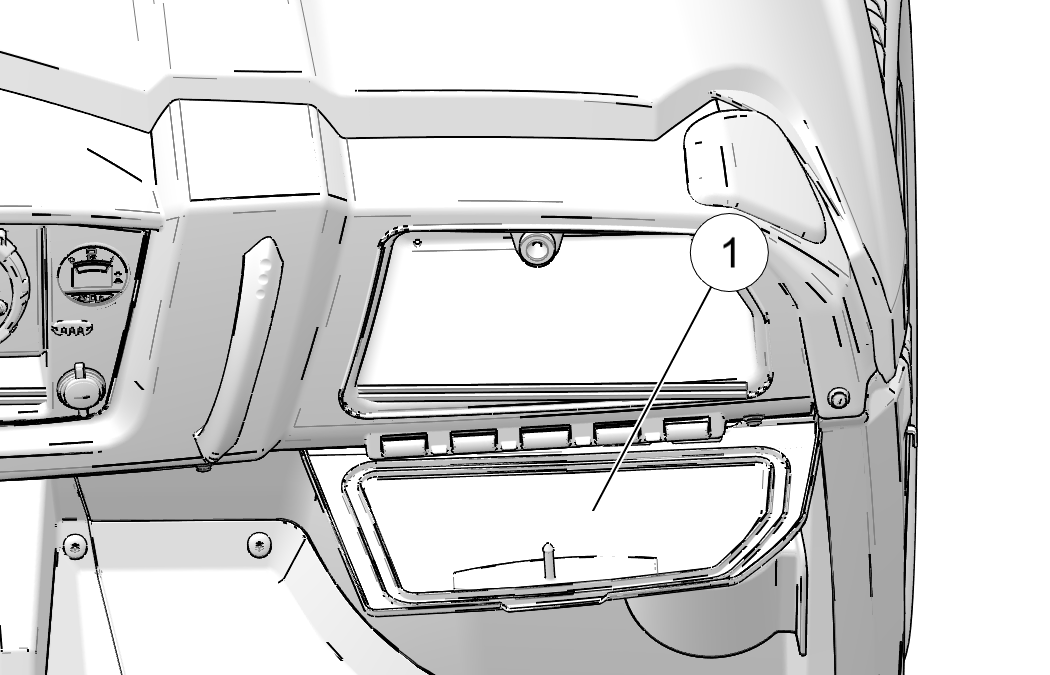

The Battery Charging Warning is located inside the glove box of your vehicle .

WARNING

  • Explosive gases are released when batteries are charged. Keep sparks, flames and cigarettes away. Shield eyes when working near batteries.
  • Do not charge batteries in a non-ventilated enclosed area or near flammable materials.

  • Do not attempt to charge frozen, leaking, or damaged batteries.
  • Connect battery charger to properly rated electrical receptacle with GFCI.
  • Do not charge with storage or weather cover on vehicle or with the cab enclosure doors closed, as fire and explosion are possible.
  • Refer to Owner’s Manual or contact your local dealer with any questions.

TO MAXIMIZE BATTERY LIFE
Always check and maintain water level monthly.
  • Use only distilled water
  • Water level should be kept 1/4” (6mm) below fill well.
  • Do not overfill battery.
Always keep batteries fully charged.
  • For maximum life, charge your vehicle at every opportunity.
  • Use only the charger supplied with the vehicle.
  • Inspect battery connections regularly.
Failure to properly maintain your batteries will void warranty coverage


Battery Compartment Warning

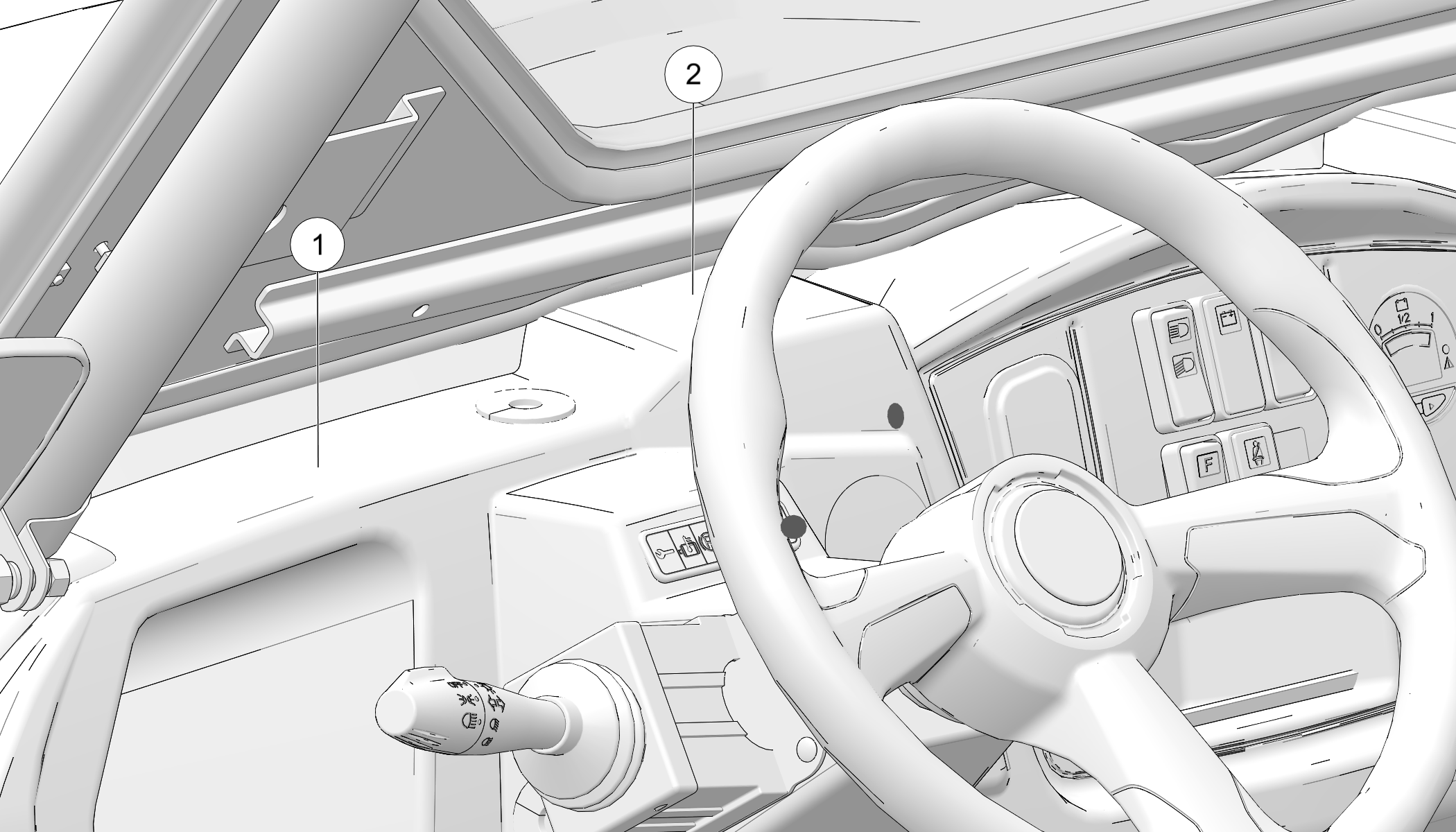

The Battery Compartment Warning is located on the console near the floor .

  • SULFURIC ACID in batteries will burn skin, eyes, and clothing. Always wear eye protection and proper clothing. Do not tip batteries. Keep vent caps tight and level. In event of injury, flush with water and call physician immediately.


  • HIGH VOLTAGE CABLES and terminals are contained within this compartment. Improper contact between battery terminals can result in electrical shorts. ELECTRICAL SHORTS can result in burns.
  • Do not use high pressure water to wash the battery compartment. Damage to the vented batteries will result.
  • Tampering with or unauthorized modification of this unit could result in serious personal injury, will void the warranty, and can result in permanent damage to the vehicle.
  • Refer to your Owner’s Manual or contact your local GEM dealer with any questions.


Cargo Dump Warning

WARNING
Be sure the area around bed is clear before dumping.
Actuate manual dump slowly and use caution, as heavy loads can cause quick release.
Be sure bed is securely latched before operating the vehicle.

Passenger/Tire Pressure Warning

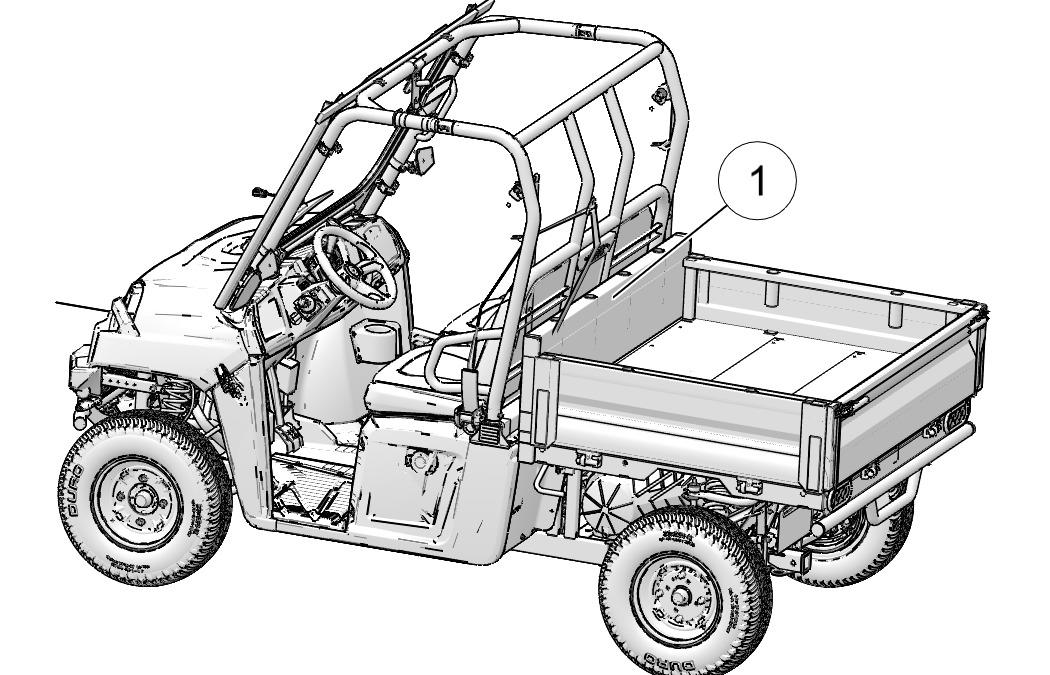

The Passenger/Tire Pressure Warning is located on the inside of the cargo box on the front panel .

  • Reduce speed and allow greater distance for braking when carrying cargo.
  • Overloading or carrying tall, off-center, or unsecured loads will increase your risk of losing control. Loads should be centered and carried as low as possible in box.
  • For stability on rough or hilly terrain, reduce speed and cargo.
  • Be careful if load extends over the side of the box.


eM1400 LSV

BASE

BASE WITH SIDES

BASE WITH VAN ENCLOSURE

TIRE PRESSURE IN PSI (KPa)

FRONT 35 (241)

REAR 35 (241)

FRONT 35 (241)

REAR 35 (241)

FRONT 35 (241)

REAR 35 (241)

VEHICLE OPERATING WEIGHT

1703 lbs.

(772 kg)

1758 lbs.

(797 kg)

1828 lbs.

(829 kg)

MAXIMUM CARGO PAYLOAD

900 lbs.

(408 kg)

845 lbs.

(383 kg)

775 lbs.

(351 kg)

GVW = VEHICLE + OCCUPANTS + PAYLOAD + ACCESSORIES

2953 lbs.

(1339 kg)

2953 lbs.

(1339 kg)

2953 lbs.

(1339 kg)

Read Operation and Maintenance Manual for more detailed loading information.
  • Passengers can be thrown off. This can cause serious injury or death.
  • Never carry passengers in cargo box.
IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.
