The ST 93
Ripper Install Kit includes: Qty.- 1, Install kit for your specific
model. ST 93 Ripper sold separately.
| Ref |
Qty |
Part Description |
Part Number |
| 1* |
1 |
Honda Install Kit |
2882729 |
| 2* |
1 |
Yamaha Install Kit |
2882730 |
| 3* |
1 |
Kawasaki Install Kit |
2882731 |
| 4 |
1 |
ST 93 Ripper Install Kit instructions |
9927988 |
Items marked (*) are
specific to your make and model of bike. Only items specific to your
make and model of bike are included
in the Install Kit. See Install Kit drawings and parts
lists for items specific to each Install Kit.
INSTALL KIT: 2882729
This install kit
is specific to the Honda models listed in the application section:
| Ref |
Qty |
Part Description |
Part Number |
| 1 |
1 |
RDCR, Ripper - Honda, LH |
5141218 |
| 2 |
1 |
RDCR, Ripper - Honda, RH |
5141219 |
| 3 |
1 |
Drive Sprocket - Honda |
1333882 |
| 4 |
1 |
Bearing-Ball |
3514549 |
| 5 |
1 |
Asm, Backer Plate - Honda |
1333883 |
| 6 |
1 |
Chain, 420 - Ripper |
3222273 |
| 7 |
3 |
Washer-Split |
7557064 |
| 8 |
1 |
Screw - M6X65 |
7520727 |
| 9 |
2 |
Screw - M6X75 |
7520729 |
| 10 |
5 |
Cable Tie, Nylon |
7081504 |
| 11 |
2 |
Screw - M8X75 |
7519948 |
| 12 |
1 |
Plate, Fork Tube, Clamp |
5264330 |
| 13 |
2 |
Clamp, Fork Tube, Top |
5454078 |
| 14 |
1 |
Reducer-Spindle - Honda, RH |
5141389 |
| 15 |
1 |
Reducer-Spindle - Honda, LH |
5141390 |
| 16 |
2 |
Nut, Locking - M8, |
7547332 |
| 17 |
1 |
Screw - 7/16X6.5 |
7520726 |
| 18 |
1 |
Nut, Locking - 7/16 |
7542525 |
| 19 |
1 |
Screw - M10X50 |
7518971 |
| 20 |
1 |
Nut, Locking - M10 |
7547423 |
| 21 |
1 |
Strut, Fixed - Ripper |
5141221 |
INSTALL KIT: 2882730
This install kit
is specific to the Yamaha models listed in the application section:
| Ref |
Qty |
Part Description |
Part Number |
| 1 |
1 |
Spacer, Ripper - Yamaha |
5141220 |
| 2 |
1 |
Drive Sprocket - Yamaha |
1333888 |
| 3 |
1 |
Chain, 420 - Ripper |
3222273 |
| 4 |
1 |
Bearing-Ball |
3514549 |
| 5 |
1 |
Asm, Backer Plate - Yamaha |
1333889 |
| 6 |
1 |
Washer - Split |
7557064 |
| 7 |
2 |
Screw - M6X65 |
7520727 |
| 8 |
1 |
Screw - M6X75 |
7520729 |
| 9 |
5 |
Cable Tie, Nylon |
7081504 |
| 10 |
2 |
Screw - M8X75 |
7519948 |
| 11 |
1 |
Plate-Fork Tube Clamp |
5264330 |
| 12 |
2 |
Clamp-Fork Tube Top |
5454078 |
| 13 |
1 |
Reducer, Spindle - Yamaha, LH |
5141394 |
| 14 |
1 |
Reducer, Spindle - Yamaha, RH |
5141393 |
| 15 |
2 |
Nut, Locking - M8 |
7547332 |
| 16 |
1 |
Screw - 7/16X6.5 |
7520726 |
| 17 |
1 |
Nu t- 7/16 Nylon |
7542525 |
| 18 |
1 |
Screw - M10X50 |
7518971 |
| 19 |
1 |
Nut, Locking - M10 |
7547423 |
| 20 |
1 |
Strut, Fixed - Ripper 260mm |
5141221 |

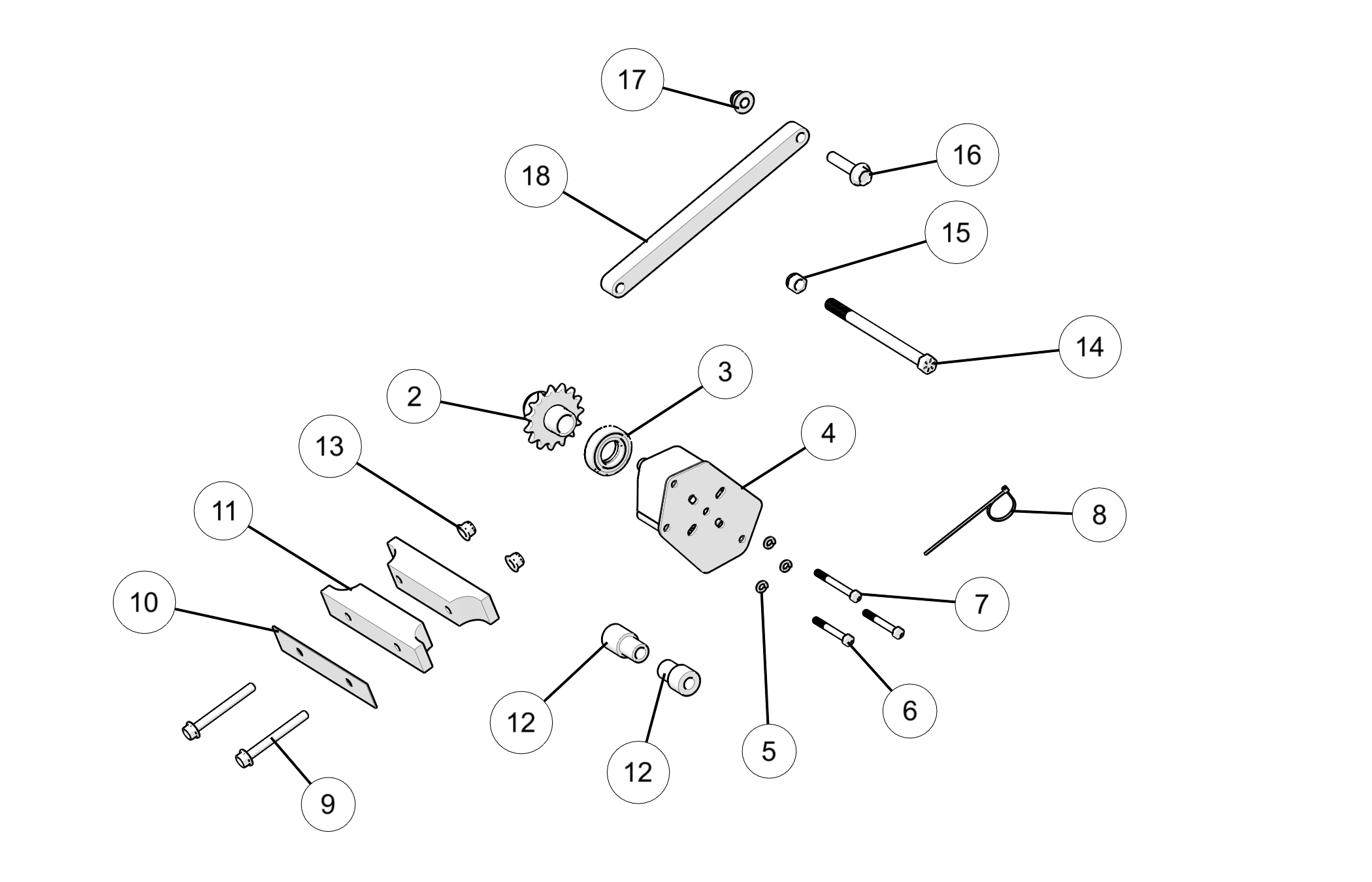

INSTALL KIT: 2882731
This install kit
is specific to the Kawasaki models listed in the application section:
| Ref |
Qty |
Part Description |
Part Number |
| 1 |
1 |
Chain, 420 - Ripper |
3222273 |
| 2 |
1 |
Drive Sprocket, - Kawasaki |
1333885 |
| 3 |
1 |
Bearing-Ball |
3514549 |
| 4 |
1 |
Asm, Backer Plate - Kawasaki |
1333886 |
| 5 |
1 |
Washer, Split |
7557064 |
| 6 |
2 |
Screw - M6X55 |
7520728 |
| 7 |
1 |
Screw - M6X65 |
7520727 |
| 8 |
5 |
Cable Tie, Nylon |
7081504 |
| 9 |
2 |
Screw - M8X75 |
7519948 |
| 10 |
1 |
Plate, Fork Tube Clamp |
5264330 |
| 11 |
2 |
Clamp, Fork Tube Top |
5454078 |
| 12 |
2 |
Reducer, Spindle - Kawasaki |
5141392 |
| 13 |
2 |
Nut, Locking - M8 |
7547332 |
| 14 |
1 |
Screw - 7/16X6.5 |
7520726 |
| 15 |
1 |
Nut, Locking - 7/16 |
7542525 |
| 16 |
1 |
Screw - M10X50 |
7518971 |
| 17 |
1 |
Nut, Locking - M10 |
7547423 |
| 18 |
1 |
Strut, Fixed - Ripper |
5141388 |
